New 313 GC Hydraulic Excavator for Sale

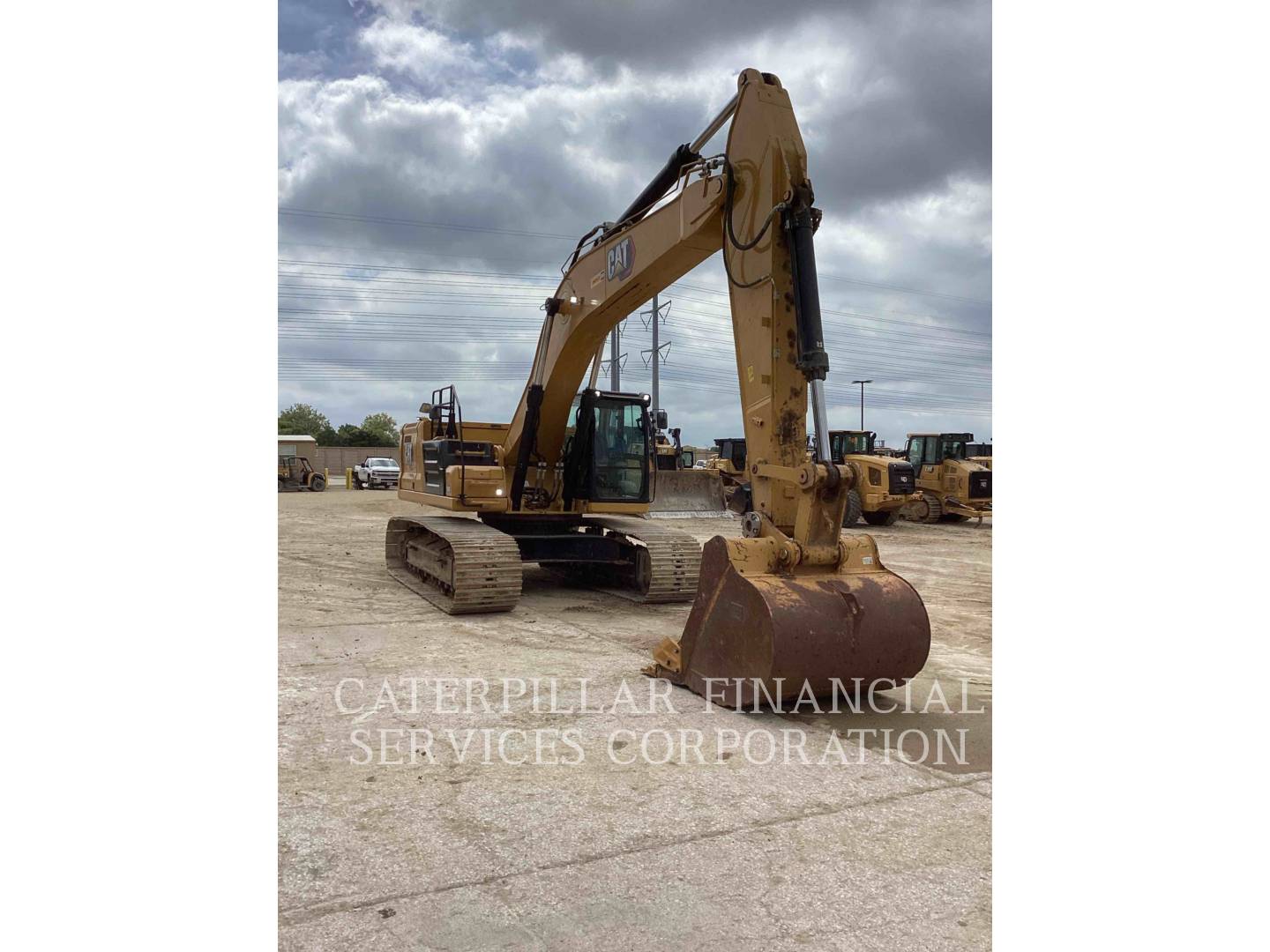

313 GC Hydraulic Excavator

Net Power

73 hp
Engine Model

Cat C3.6
Engine Power

74 hp
Engine Power

75 hp (metric)

Engine

Net Power: 73 hp
Engine Model: Cat C3.6
Engine Power: 74 hp
Engine Power: 75 hp (metric)
Net Power: 74 hp (metric)
Bore: 4 in
Stroke: 5 in
Displacement: 220 in³
Biodiesel Capability: Up to B20¹
Emissions: Meets U.S. EPA Tier 4 Final, EU Stage V, and Japan 2014 emission standards
Note: Net power advertised is the power available at the flywheel when the engine is equipped with fan, air intake system, exhaust system and alternator with engine speed at 2,400 rpm. Advertised power is tested per the specified standard in effect at the time
Note: ¹Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels** up to: 20% biodiesel FAME (fatty acid methyl ester)* or 100% renewable diesel, HVO

Hydraulic System

Main System: 247 L/min (65 gal/min)
Maximum Pressure: 5075 psi
Maximum Pressure: 5075 psi
Maximum Pressure: 3770 psi

Swing Mechanism

Swing Speed: 11.5 r/min
Maximum Swing Torque: 25888 lbf·ft

Weights

Operating Weight: 30400 lb

Service Refill Capacities

Fuel Tank Capacity: 68.2 gal (US)
Cooling System: 4 gal (US)
Engine Oil: 2.1 gal (US)
Final Drive: 0.8 gal (US)
Hydraulic System: 22.5 gal (US)
Hydraulic Tank: 18.5 gal (US)

Dimensions

Boom: Reach 4.65 m (15'3")
Stick: Reach R3.0 m (9'10")
Bucket: GD 0.68 m³ (0.89 yd³)
Shipping Height: 9.3 ft
Handrail Height: 9.3 ft
Shipping Length: 26.4 ft
Shipping Length: 26.3 ft
Tail Swing Radius: 7.2 ft
Counterweight Clearance: 3 ft
Ground Clearance: 1.5 ft
Track Length: 12.3 ft
Length to Center of Rollers: 10 ft
Track Gauge: 6.5 ft
Transport Width: 8.2 ft

Working Ranges and Forces

Maximum Digging Depth: 19.8 ft
Boom: Reach 4.65 m (15'3")
Stick: Reach R3.0 m (9'8")
Bucket: GD 0.68 m³ (0.89 yd³)
Maximum Reach at Ground Level: 28.4 ft
Maximum Cutting Height: 29 ft
Maximum Loading Height: 21.1 ft
Minimum Loading Height: 5.3 ft
Maximum Depth Cut for 2440 mm: 19.3 ft
Maximum Vertical Wall Digging Depth: 17 ft
Minimum Working Equipment Radius: 8.4 ft
Bucket Digging Force: 22180 lbf
Stick Digging Force: 13330 lbf

Air Conditioning System

Air Conditioning: The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 0.85 hg of refrigerant which has a CO2 equivalent of 1.216 metric tonnes.

NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
BOOM AND STICKS
- 4.65 m (15'3") Reach boom
CAB
- Rollover protective structure (ROPS)
- Comfort Cab: air suspension seat, 203 mm (8") touch screen monitor
CAT TECHNOLOGIES
- VisionLink^®
- Remote Flash
ELECTRICAL SYSTEM
- Maintenance free battery
- LED chassis light, left-side boom light, cab lights
- Programmable time-delay LED working lights
ENGINE
- Cat C3.6 single turbo diesel engine
- Auto engine speed control
- Auto engine shutdown
- 52°C (125°F) high-ambient cooling capacity without de-rate
- -18°C (0°F) cold start capability
- Electric fuel priming pump
- Variable speed fan
- Single fuel filtration system
- Double element air filter with integrated precleaner
- Biodiesel capability up to B20
HYDRAULIC SYSTEM
- Boom and stick regeneration circuit
- Auto hydraulic warm up
- Auto two speed travel
- Electric main control valve
- Boom and stick drift reduction valve
SAFETY AND SECURITY
- Rear and right-side-view cameras
- Hydraulic lock out lever
- Ground-level engine shutoff switch
- Service platform with anti-skid plate and countersunk bolts
- Signaling/warning horn
SERVICE AND MAINTENANCE
- Grouped engine oil and fuel filters
- Side entry to service platform
- Ground-level engine oil dipstick
- Sampling ports for Scheduled Oil Sampling (S·O·S)
- Lockable disconnect switch
- Integrated vehicle health management system
UNDERCARRIAGE AND STRUCTURES
- Grease lubricated track link
- Tie down points on base frame
- 2470 kg (5,445 lb) counterweight

NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
BOOM AND STICKS
- 2.5 m (8'2") Reach stick (Standard in the Kingdom of Saudi Arabia and Türkiye)
- 2.8 m (9'2") Reach stick
- 2.8 m (9'2") Thumb Ready stick
- 3.0 m (9'10") Reach stick
CAB
- Operator Protective Guards (OPG)
CAT TECHNOLOGIES
- VisionLink Productivity
ELECTRICAL SYSTEM
- LED right-side boom light
- 360° lighting
HYDRAULIC SYSTEM
- Boom and stick lowering check valves
- Medium-pressure line
- High-pressure line
- Quick coupler line
SAFETY AND SECURITY
- Swing alarm
- Inspection lighting
UNDERCARRIAGE AND STRUCTURES
- 500 mm (20") triple grouser shoes
- 500 mm (20") triple grouser shoes with rubber pad
- 500 mm (20") rubber track shoes
- 600 mm (24") rubber track shoes
- 600 mm (24") triple grouser shoes
- 700 mm (28") triple grouser shoes
- 2500 mm (8'2") blade
- 2600 mm (8'6") blade
- 2700 mm (8'10") blade
