M Series Motor Graders

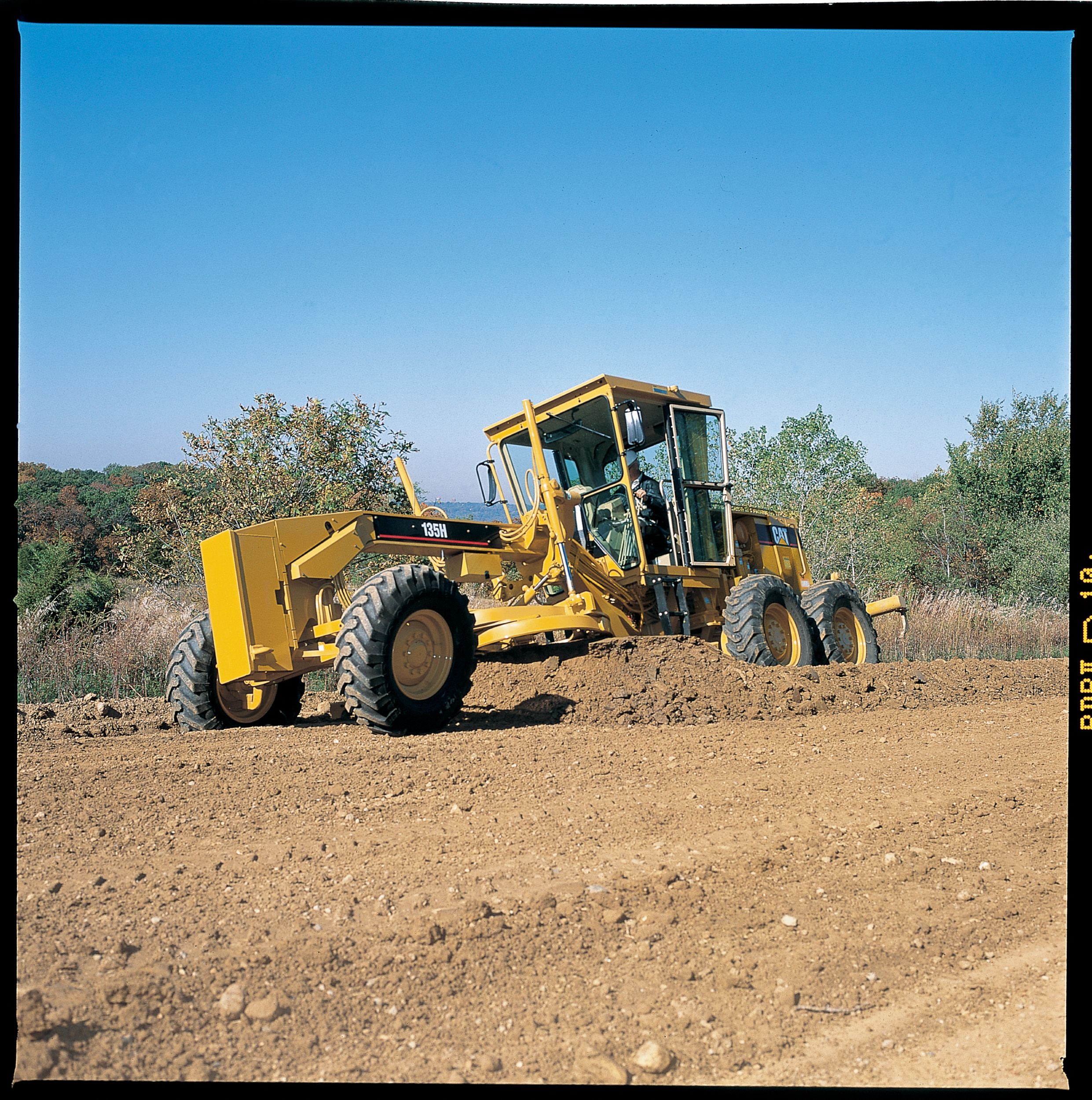

135H Standard Motor Grader
-
Engine ModelCat 3116 TA
-
VHP155 HP
-
VHP146 HP
-
VHP166 HP
Engine
- Engine Model
- Cat 3116 TA
- VHP
- 155 HP
- VHP
- 146 HP
- VHP
- 166 HP
- Bore
- 4.13 in
- Stroke
- 5 in
- Speed at Rated Power
- 2000rpm
- Maximum Torque
- 471.3 lb/ft
- Torque Rise
- 30%
- Base Power
- 135 HP
- Torque Rise
- 33%
- Maximum Torque
- 530.31 lb/ft
- Displacement
- 403 in³
- VHP
- 135 HP
- Number of Cylinders
- 6
- Derating Altitude
- 12304 ft
Power Train
- Forward
- 8 Fwd/ 6 Rev
- Transmission
- Direct drive, power shift
- Brakes
- air actuated, oil-disc
- Brakes
- 2884 in²
- Brakes
- Multiple oil-disc unit
- Brakes
- air actuated
Hydraulic System
- Circuit Type
- Load sensing, pressure compensating
- Pump Type
- Variable-displacement piston
- Pump Output
- 39 gal/min
- Maximum System Pressure
- 3500 psi
- Standby Pressure
- 450 psi
Operating Specifications
- Top Speed
- 26 mile/h
- Top Speed
- 20.6 mile/h
- Turning Radius
- 23.67 ft
- Steering Range
- 50°
- Articulation Angle
- 20°
- Forward
- 2.3 mile/h
- Forward
- 3.1 mile/h
- Forward
- 4.5 mile/h
- Forward
- 6.2 mile/h
- Forward
- 9.6 mile/h
- Forward
- 13 mile/h
- Forward
- 17.9 mile/h
- Forward
- 26 mile/h
- Reverse
- 1.8 mile/h
- Reverse
- 3.3 mile/h
- Reverse
- 4.9 mile/h
- Reverse
- 7.6 mile/h
- Reverse
- 14.3 mile/h
- Reverse
- 20.6 mile/h
Service Refill
- Fuel Capacity
- 75 gal (US)
- Cooling System
- 10.4 gal (US)
- Hydraulic System
- 16 gal (US)
- Hydraulic System
- 9.9 gal (US)
- Engine Oil
- 6 gal (US)
- Transmission
- 12.2 gal (US)
- Tandem Housing
- 15.9 gal (US)
- Front Wheel Spindle Bearing Housing
- 0.5 gal (US)
- Circle Drive Housing
- 7 gal (US)
Frame
- Circle
- 60.2 in
- Circle
- 1.2 in
- Drawbar
- 5 in
- Front
- 11 in
- Front
- 0.9 in
- Front
- 9.3 in
- Front
- 0.4 in
- Front
- 90 lb/ft
- Front
- 115 lb/ft
- Front
- 99 in³
- Front
- 225 in³
- Front Axle
- 23.9 in
- Front Axle
- 18°
- Front Axle
- 32°
Tandems
- Height
- 19.8 in
- Width
- 6.8 in
- Sidewall Thickness
- 0.55 in
- Sidewall Thickness
- 0.63 in
- Drive Chain Pitch
- 1.75 in
- Wheel Axle Spacing
- 59.5 in
- Tandem Oscillation
- 15°
- Tandem Oscillation
- 25°
Moldboard
- Blade Width
- 12 ft
- Moldboard
- 24 in
- Moldboard
- 0.87 in
- Arc Radius
- 16.25 in
- Throat Clearance
- 4.7 in
- Cutting Edge Width
- 6 in
- Cutting Edge Thickness
- 0.63 in
- End Bit
- 6 in
- End Bit
- 0.63 in
Blade Range
- Circle Centershift
- 18.1 in
- Circle Centershift
- 27.2 in
- Moldboard Sideshift
- 26 in
- Moldboard Sideshift
- 26 in
- Maximum Blade Position Angle
- 90
- Blade Tip Range
- 40°
- Blade Tip Range
- 5°
- Maximum Shoulder Reach Outside of Tires
- 69.3 in
- Maximum Shoulder Reach Outside of Tires
- 77.8 in
- Maximum Lift Above Ground
- 18 in
- Maximum Depth of Cut
- 28.7 in
Ripper
- Ripping Depth
- 10.3 in
- Ripper Shank Holders
- 5
- Shank Holder Spacing
- 21 in
- Penetration Force
- 9566 lb
- Pry
- 5020 lb
- Machine Length Increase
- 27.1 in
Scarifier
- Front
- 11.5 in
- Front
- 4.6 in
- Front
- 46.6 in
- Front
- 11
Weights
- Gross Vehicle Weight
- 8274 lb
- Gross Vehicle Weight
- 20158 lb
- Operating Weight
- 7632.39 lb
- Operating Weight
- 18355.67 lb
- Gross Vehicle Weight
- 7632 lb
- Gross Vehicle Weight
- 18357 lb
- Gross Vehicle Weight
- 28432 lb
- Operating Weight
- 25988.06 lb
- Gross Vehicle Weight
- 25989 lb
Dimensions
- Height
- 122 in
- Height
- 130.9 in
- Length
- 380 in
- Width
- 96 in
- Length
- 231 in
- Length
- 321 in
- Length
- 102 in
- Length
- 59 in
- Width
- 95 in
- Width
- 81 in
Cab
- ROPS
- yes
