M Series Motor Graders

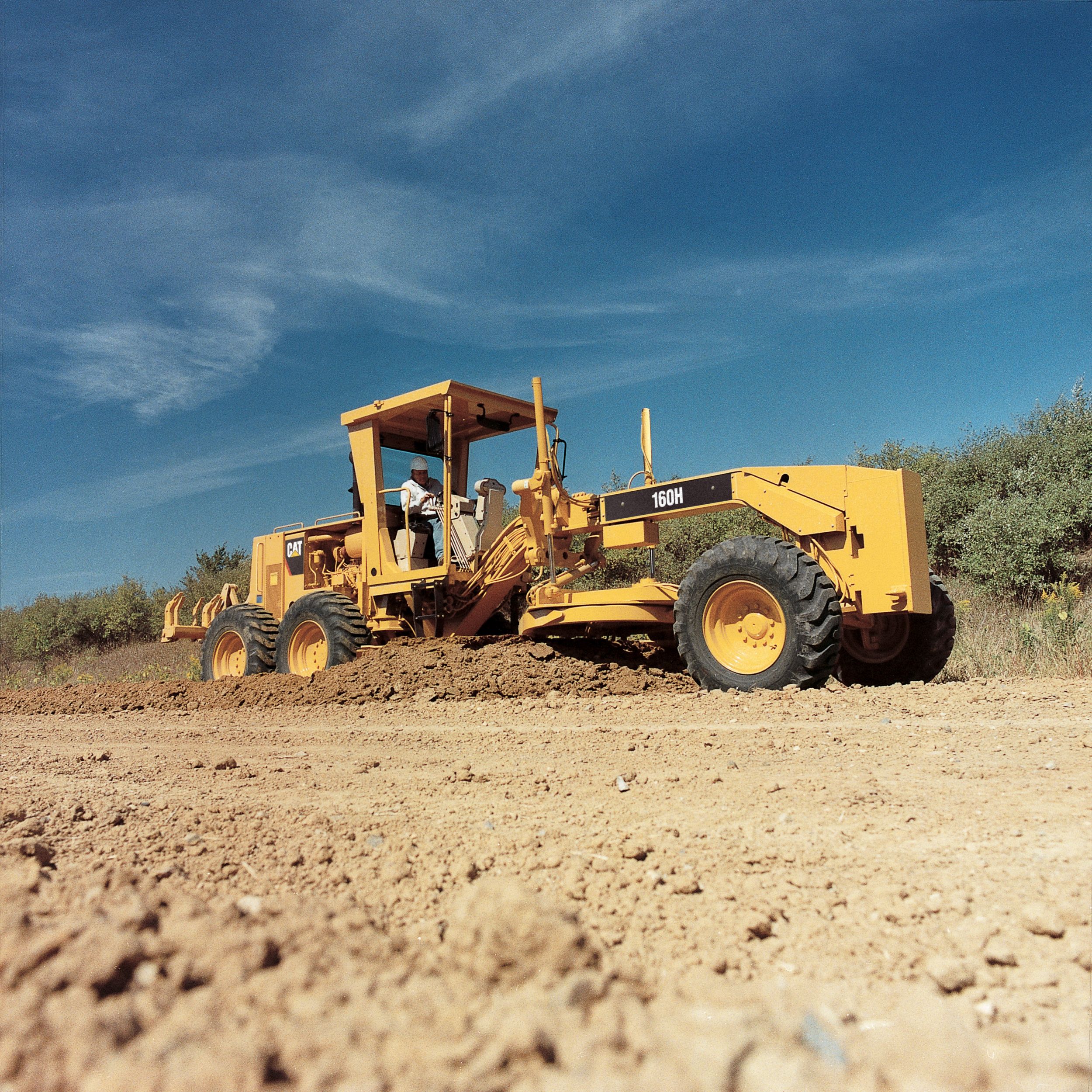

160H Standard Motor Grader
-
Engine ModelCat 3306 T
-
VHP200 hp
-
VHP201 hp
-
VHP221 hp
Engine
- Engine Model
- Cat 3306 T
- VHP
- 200 hp
- VHP
- 201 hp
- VHP
- 221 hp
- Bore
- 4.75 in
- Stroke
- 6 in
- Maximum Torque
- 719 lb/ft
- Torque Rise
- 335
- Base Power
- 180 hp
- Displacement
- 638 in³
- VHP
- 180 hp
- Number of Cylinders
- 6
Power Train
- Forward
- 8 Fwd/ 6 Rev
- Transmission
- Direct Drive, Power Shift
- Brakes
- Air Activated, Oil-Disc
- Brakes
- 3712 in²
- Brakes
- Multiple Oil-Disc Unit
- Brakes
- Seperate Circuits to Right and Left Tandems
Hydraulic System
- Circuit Type
- Load Sensing, Pressure Compensation
- Pump Type
- Variable-Displacement and Piston Pump
- Pump Output
- 40.9 gal/min
- Maximum System Pressure
- 3500 psi
- Standby Pressure
- 450 psi
Operating Specifications
- Top Speed
- 25.3 mile/h
- Top Speed
- 20 mile/h
- Turning Radius
- 24.3 ft
- Steering Range
- 50°
- Articulation Angle
- 20°
- Forward
- 2.2 mile/h
- Forward
- 3 mile/h
- Forward
- 4.3 mile/h
- Forward
- 6 mile/h
- Forward
- 9.3 mile/h
- Forward
- 12.6 mile/h
- Forward
- 17.4 mile/h
- Forward
- 25.3 mile/h
- Reverse
- 1.7 mile/h
- Reverse
- 3.2 mile/h
- Reverse
- 4.7 mile/h
- Reverse
- 7.3 mile/h
- Reverse
- 13.9 mile/h
- Reverse
- 20 mile/h
Service Refill
- Fuel Capacity
- 90 gal (US)
- Cooling System
- 10.4 gal (US)
- Hydraulic System
- 20.8 gal (US)
- Hydraulic System
- 9.9 gal (US)
- Engine Oil
- 7 gal (US)
- Transmission
- 12.2 gal (US)
- Tandem Housing
- 20.8 gal (US)
- Front Wheel Spindle Bearing Housing
- 0.13 gal (US)
- Circle Drive Housing
- 1.8 gal (US)
Frame
- Circle
- 61.1 in
- Circle
- 1.6 in
- Drawbar
- 5 in
- Front
- 12 in
- Front
- 1 in
- Front
- 9.5 in
- Front
- 0.5 in
- Front
- 112 lb/ft
- Front
- 144 lb/ft
- Front
- 127 in³
- Front
- 291 in³
- Front Axle
- 24.6 in
- Front Axle
- 18°
- Front Axle
- 32°
Tandems
- Height
- 22.5 in
- Width
- 7.9 in
- Sidewall Thickness
- 0.63 in
- Sidewall Thickness
- 0.71 in
- Drive Chain Pitch
- 2 in
- Wheel Axle Spacing
- 60 in
- Tandem Oscillation
- 15°
- Tandem Oscillation
- 25°
Moldboard
- Blade Width
- 14 ft
- Moldboard
- 27 in
- Moldboard
- 1 in
- Arc Radius
- 16.25 in
- Throat Clearance
- 3.5 in
- Cutting Edge Width
- 8 in
- Cutting Edge Thickness
- 0.63 in
- End Bit
- 8 in
- End Bit
- 0.63 in
Blade Range
- Circle Centershift
- 21.3 in
- Circle Centershift
- 27.6 in
- Moldboard Sideshift
- 26 in
- Moldboard Sideshift
- 26 in
- Blade Tip Range
- 40°
- Blade Tip Range
- 5°
- Maximum Shoulder Reach Outside of Tires
- 70.5 in
- Maximum Shoulder Reach Outside of Tires
- 77.8 in
- Maximum Lift Above Ground
- 17.8 in
- Maximum Depth of Cut
- 30.3 in
Ripper
- Ripping Depth
- 18.2 in
- Ripper Shank Holders
- 5
- Shank Holder Spacing
- 21 in
- Penetration Force
- 18778 lb
- Pry
- 20460 lb
- Machine Length Increase
- 38.2 in
Scarifier
- Front
- 4.6 in
- Front
- 11.5 in
- Front
- 46.6 in
- Front
- 11
- Rear
- 91 in
- Rear
- 9
- Rear
- 10.5 in
Weights
- Gross Vehicle Weight
- 9981 lb
- Gross Vehicle Weight
- 24244 lb
- Gross Vehicle Weight
- 9238 lb
- Gross Vehicle Weight
- 22544 lb
- Gross Vehicle Weight
- 34225 lb
- Gross Vehicle Weight
- 31782 lb
Dimensions
- Height
- 122.83 in
- Height
- 131.69 in
- Length
- 394.17 in
- Width
- 97 in
- Length
- 239.61 in
- Length
- 334.13 in
- Length
- 99.13 in
- Length
- 59 in
- Width
- 96.14 in
- Width
- 81.77 in
