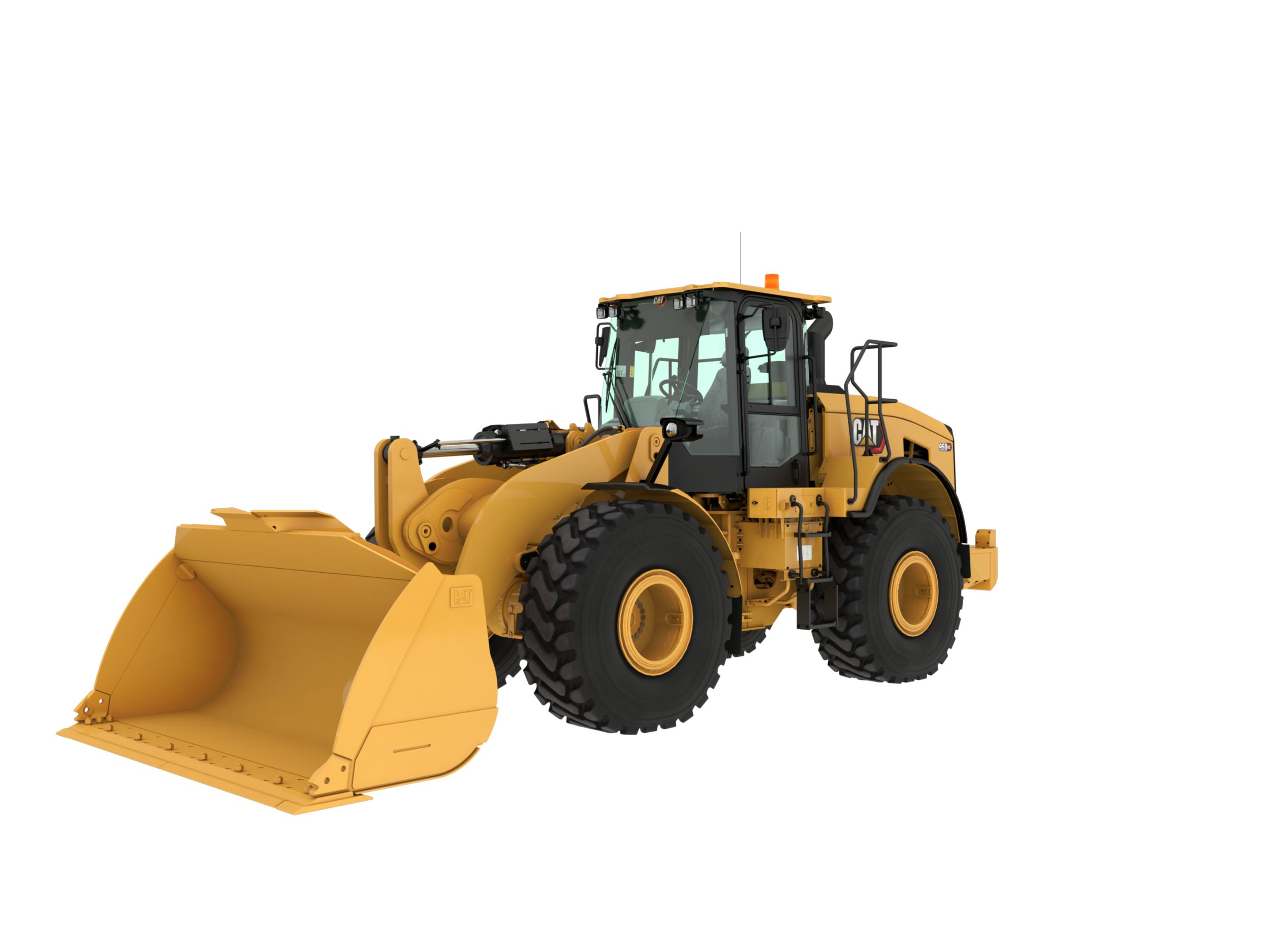

950 GC Wheel Loader | Front Loader

Net Power

225 hp
Emissions

Tier 4/Stage V
Displacement

428 in³
Engine Model

Cat C7.1

Engine

Net Power: 225 hp
Emissions: Tier 4/Stage V
Displacement: 428 in³
Engine Model: Cat C7.1
Maximum Net Power: 225 hp
Maximum Net Power: 228 hp
Maximum Net Power: 225 hp
Maximum Power: 240 hp
Maximum Power: 243 hp
Maximum Power: 241 hp
Peak Gross Torque: 805 ft·lbf
Peak Gross Torque: 811 ft·lbf
Bore: 4.13 in
Note: The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.9 kg (4.2 lb) of refrigerant which has a CO2 equivalent of 2.717 metric tonnes (2.995 tons).
Stroke: 5.31 in

Weights

Operating Weight: 41554 lb

Buckets

Bucket Capacities: 2.9-4.4 m³ (3.75-5.75 yd³)

Transmission

Forward: 4.5 mile/h
Forward: 8 mile/h
Forward: 14.2 mile/h
Forward: 22.4 mile/h
Reverse: 4.5 mile/h
Reverse: 8 mile/h
Reverse: 14.2 mile/h
Note: Maximum travel speed in standard vehicle with empty bucket and standard L3 tires with 760 mm (30 in) roll radius.

Hydraulic System

Hydraulic Cycle Time: 9.4 s
Implement System: 4047 psi
Implement System: 68 gal/min
Steering System: Piston

Service Refill Capacities

Cooling System: 13.2 gal (US)
Crankcase: 4.8 gal (US)
DEF Tank: 4.2 gal (US)
Differential: 10.6 gal (US)
Differential: 10 gal (US)
Fuel Tank Size: 76.6 gal (US)
Hydraulic Tank: 29.6 gal (US)
Transmission: 11.9 gal (US)

Sound

With Cooling Fan Speed at Maximum Value: 109 dB(A)
With Cooling Fan Speed at Maximum Value: 76 dB(A)*
With Cooling Fan Speed at Maximum Value: 73 dB(A)
With Cooling Fan Speed at 70
With Cooling Fan Speed at Maximum Value: Distance of 15 m (49.2 ft), moving forward in second gear ratio.
Note: *Distance of 15 m (49.2 ft), moving forward in second gear ratio.
Note: **For machines in European Union countries and in countries that adopt the "EU Directives."
Note: ***European Union Directive "2000/14/EC" as amended by "2005/88/EC."
With Cooling Fan Speed at 70: 107 LWA***
With Cooling Fan Speed at 70: 73 dB(A)
With Cooling Fan Speed at 70: For machines in European Union countries and in countries that adopt the EU Directives
With Cooling Fan Speed at 70: European Union Directive "2000/14/EC" as amended by "2005/88/EC."
With Cooling Fan Speed at Maximum Value: Distance of 15 m (49.2 ft), moving forward in second gear ratio.

Dimensions

B: 13.75 ft
Centerline of Rear Axle to Edge of Counterweight: 6.75 ft
Centerline of Rear Axle to Hitch: 5.42 ft
Ground Clearance: 1.5 ft
Height: 11.17 ft
Height: 8.75 ft
Height: 11.33 ft
Lift Arm Clearance: 12 ft
Note: All dimensions are approximate and based on MAXAM MS302 23.5R25 L3 radial tires.
Rack Back: 45 degrees
Rack Back: 40 degrees
Rack Back: 60 degrees
Wheel Base: 10.83 ft

Weights and Operating Specifications

Breakout Force: 34638 lbf
Note: For 3.1 m3 (4.0 yd3) general purpose buckets with BOCE. Weight based on a machine configuration with MAXAM MS302 23.5R25 L3 radial tires, full fluids, operator, standard counterweight, cold start, roading fenders, Product Link™, secondary steering, soun
Note: *Full compliance to ISO (2007) 14397-1 Sections 1 thru 6, which requires 2% verification between calculations and testing.
Note: **Compliance to ISO (2007) 14397-1 Sections 1 thru 5.
Operating Weight: 41554 lb
Tipping Load: 24264 lb
Tipping Load: 25875 lb

Engine - Tier 4 Final/Stage IV

Emissions: Tier 4/Stage IV

NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
POWER TRAIN
- Engine - Cat C7.1 meets Tier 4 Final/Stage IV emissions standards
- Torque converter
- Transmission, automatic, power shift (4F/3R), kick-down function, overspeed protection
- Brakes, full hydraulic enclosed wet-disc
- EIMS (Engine Idle Management System)
- EIS (Auto Idle Shutdown)
- Fan, radiator, electronically controlled, hydraulically driven, temperature sensing, on demand
- Filter, fuel primary-water separator/secondary
- Radiator, unit core (9.5 fpi) with ATAAC
- Starting aid, glow plugs
- Switch, transmission neutralizer lockout
HYDRAULICS
- Load sensing implement system pilot operated
- Dedicated load sensing steering pump
- Dedicated brake and fan gear pump
ELECTRICAL
- Alarm, back-up/main disconnect switch
- Alternator (145-amp, brush type)
- Batteries (2), maintenance free
- Ignition key; start/stop switch
- Lighting system, halogen (6 total) - Four (4) halogen work lights; Two (2) halogen road lights
- Starting and charging system (24-volt)
- Starter, electric (heavy duty)
OPERATOR ENVIRONMENT
- Air conditioning (HVAC) with 10 vents and filter unit located outside of cab
- Bucket/work tool function lockout
- Cab, pressurized and sound suppressed
- Hydroformed (ROPS/FOPS) structure
- 12V power port (10A)
- Coat hook
- Radio ready
- Rear vision camera and display
- Pilot hydraulic controls, lift and tilt function
- Computerized monitoring system
- Gauges - Engine coolant temperatures/fluid level; Hydraulic/transmission oil temperature; Tachometer/DEF level
- Digital indicators - Gear indicator; Speedometer; Service meter units; Fault codes
- Warning indicators - Air inlet heater; Electrical malfunction; Engine inlet manifold temperature; Engine oil pressure, fuel level; Fuel pressure high/low; Hydraulic oil level, parking brake; Primary steering oil pressure; Service brake oil pressure; Action light, engine malfunction; Transmission filter bypass
- Heater and defroster
- Horn
- Cup holders and personal tray on right console
- Storage tray behind seat
- Mirrors, rearview external
- Seat, Cat Comfort (clotch) suspension
- Seat belt
- Steering column, adjustable angle
- Wipers/washers (front and rear)
- Window, sliding (left and right side)
TIRES, RIMS, AND WHEELS
- Tires are available from Triangle, Maxam and Bridgestone
- Offerings vary by region. Consult your local Cat dealer for further details
FLUIDS
- Premixed 50% concentration of extended life coolant with freeze protection to -34° C (-29° F)
OTHER STANDARD EQUIPMENT
- Lift and bucket return-to-dig kick outs (Electro-Magnetic), mechanical adjustment
- Couplings, Cat O-ring face seal
- Doors, service access (locking)
- Front fender, steel
- Grill, airborne debris
- Hitch, drawbar with pin
- Hood, wing doors
- Hoses, Cat XT
- Counterweight
- Linkage, Z-bar, fabricated crosstube/tilt lever
- SOS oil sampling valves
- Sight gauges - Engine coolant, hydraulic oil; Transmission oil level
- Diagnostic pressure taps
- Product Link Ready

NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
OPTIONAL EQUIPMENT
- Cold weather starting (jacket water heater, electric and ether starting aid)
- Third hydraulic function, additional dedicated single axis level
- Quick coupler control
- Limited slip differentials
- Ride control
- Air suspended seat
- Secondary steering, electrical
- Reversing cooling fan (auto/manual controlled)
- Toolbox
- Sun visor, rear
- High capacity converted 12V/15A
- Warning beacon
- Extra working lights (4), Halogen or LED
- Radio
- Fender extensions/roading
