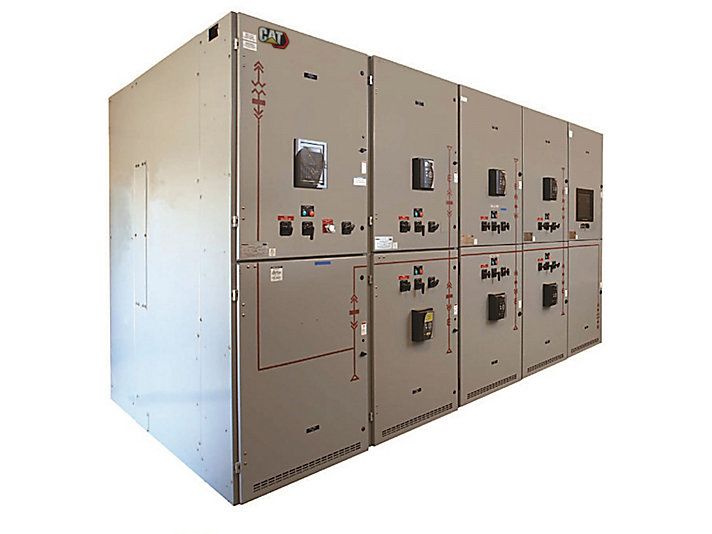

Switchgear and Paralleling Controls

Configuration

Application-specific switchgear with control logic designed to meet any customer's sequence of operations. Examples are 3+ Utilities, CHP applications, complex load shed schemes, etc

Modes of Operation

All modes of paralleling generator sets to each other and to other sources (utility, alternative fuels, wind, etc) can be supported. Caterpillar generation and control experts can design and program the most complex power schemes to meet your critical pow

Application

LV and MV ( 208V - 38 kV) 50 / 60 Hz

Configuration

Traditional customizable PLC based floor standing switchgear capable of controlling and monitoring multiple utilities, generators, and loads

Modes of Operation

Multi-unit Island and multi-unit standby mode with optional redundant controls and components.

Application

LV and MV (208V - 38 kV)

Configuration

IP4X

Operating Temperature

35 °C / 40 °C @ 1 hr, option for 0…50 °C (32…122 °F)

Standard Widths

600 mm for ABB Emax2 E2 1600 - 2500A. 750 mm for ABB Emax2 E4 3200 - 4000A. 1200 mm for ABB Emax2 E6 4000 - 6300A.

Configuration

Traditional customizable PLC based floor standing switchgear capable of controlling and monitoring multiple utilities, generators, and loads

Modes of Operation

Emergency Standby, Utility Import/Export, Peak shaving, and base load operations with redundant controls and components. Closed transition to/from generator power

Application

LV and MV ( 208V - 38 kV

Configuration

Remote monitoring and control for up to 8 generator sets via high-speed network. Enables paralleling a group of EMCP 4.4 equipped generator sets to a single utility source.

Modes of Operation

Emergency standby, island, utility paralleling

ANSI Protective Devices

15/25. 27/59, 81 O/U, 32,47 (Industrial Grade)

Configuration

Wall mounted paralleling control system that monitors and controls a single generator and a single utility.

Modes of Operation

Utility Import, Export, and base load operations, Peak shaving, and Emergency Standby. Closed Transition to/from Generator Power

Application

LV and MV (208V-32kV)

Configuration

Remote modular paralleling control system (Master Control Panel for the first 2 gensets, separate add-on control panels for up 8 more gensets, and optional control panel for 1 utility breaker)

Modes of Operation

Emergency Standby with redundant master control, Utility paralleling, peak shaving, and closed transition to/from Generator Power (with optional utility control panel)

Application

LV and MV (208V-27kV)
